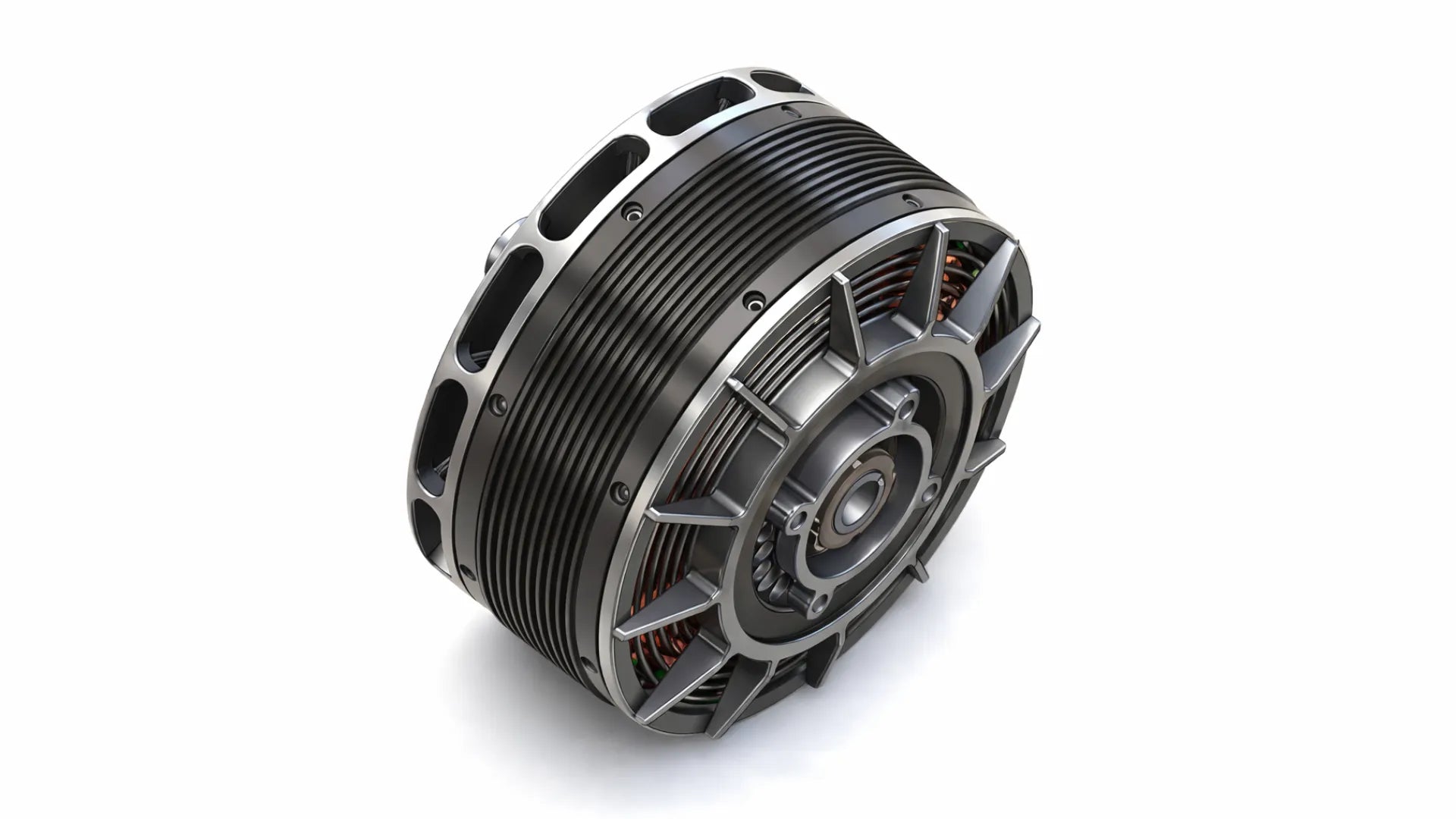

TECHNICAL SHEET – BRUSHLESS MIG 40 ENGINE
General Description
THEMIG 40It is an electric motor.high-power brushless, optimized forHigh torque, with low cogging step, and triple bearing for greater reliability.high efficiency and excellentpower densityDeveloped for applicationsexperimental aeronautics, where performance and low weight are critical.
Electrical Specifications
- Nominal operating voltage:135 V
- Peak power:26 kW
- Maximum continuous current (battery):135 A
- Peak current (battery):250 A
- Maximum efficiency:until90%
Mechanical and Performance Specifications
- Nominal speed under load:2,850 rpm
- Maximum torque (at maximum rpm):82 Nm
- Engine type:Three-phase brushless
- Operation:Integrated Hall sensor (compatible with sensorless operation)
Thrust
- Maximum thrust: 113 kgf
- Test condition:PropellerE-Props 2-62-160
(Values depend on propeller type, air density, and environmental conditions.)
Refrigeration
- System:Refrigerationair
- Design optimized for direct airflow over the stator and casing.
Dimensions and Weight
- Total weight:7.5 kg
- High ratiopower/weight, suitable for aerial applications
Fastening and Assembly
- Fastening pattern:4 × screwsM8
- Flange kit: optional, sold separately
- Assembly configuration:Direct front mounting or via dedicated flange.
Construction Features
- Protection of metal surfaces against oxidation., suitable for external use
- Resin-coated coil (impregnation)providing:
- Reduction of mechanical vibrations
- Greater structural rigidity of the winding
- Improved heat transferbetween copper and stator
- Increased reliability in continuous operation.
Technical Specifications
- High torque available at low RPMs
- Low vibration and noise levels.
- Compatible with MIG DRIVE 700 or MIG DRIVE 1000 controller with or without sensors.
- Robust design for continuous operation and high power peaks.
Typical Applications
- Electric propulsionexperimental
- Experimental motorgliders
- Experimental single-place ultralights
- Heavy drones and special UAVs
- Automotive traction system (brushless motor with low cogging step)
Important Notice – Certification
⚠️The MIG 40 engine does not have aeronautical certification.
Its use in aircraft is restricted toexperimental, recreational or research applications, and it is the responsibility of the integrator, builder, or operator to comply with applicable local standards and regulations.
Important Notes
- Power, current, and thrust depend on the cooling system, controller, propeller, and mission profile.
- Peak power operation should be time-limited according to the application; please confirm this in the product datasheet available for download.
- The flange kit is not included with the motor and must be purchased separately.
